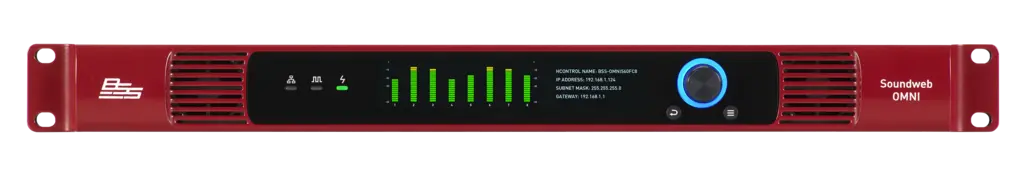

32e

The BSS Soundweb OMNI 32e I/O Expander offers the ability to onramp and offramp Analog or AES3 to and from the IP audio network. The 32e converts these signals to Dante or AES67 for processing by Soundweb OMNI DSPs or transport to compatible devices.

The 32e features 8 audio input ports, 8 audio output ports, and 8 audio flex ports, which can be configured as either inputs or outputs. Each of those input, output, and flex ports can be individually configured to support analog or stereo AES3 audio, enabling a wide variety of I/O combinations. Every input and flex port provides a studio quality 60dB microphone pre-amp, and every port utilizes a high-resolution DAC and ADC. Additionally, the 32e provides 32x32 Dante/AES67 networked audio channels

Engineered for the most critical applications, the 32e delivers enterprise-grade network security, primary and secondary Dante ports, redundant HControl ports, a full-color front panel LCD with metering for at-a-glance monitoring, and 24 fully flexible GPIO ports.

Soundweb OMNI solutions are designed, configured, controlled, and managed all within a tightly integrated collection of applications called AVX Suite. This suite of applications creates a streamlined workflow for all aspects of solution development, control, and support.

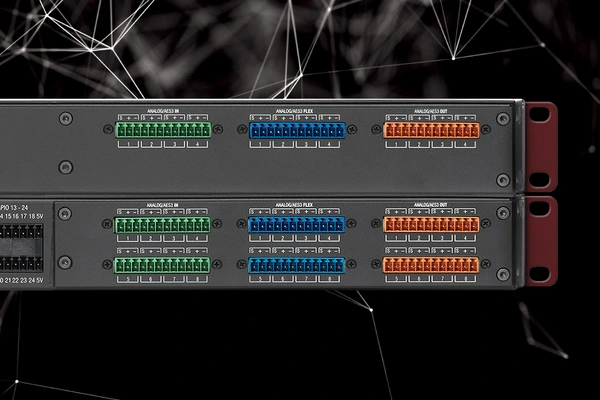

Extreme I/O Flexibility

Each audio I/O port on Soundweb OMNI I/O Expanders is format configurable as either analog or stereo AES3 and certain of the audio I/O ports are also configurable to be either inputs or outputs. All GPIO ports are configurable as either input or output ports, and their format can be either analog or digital.

Highest Quality Microphone Preamp

BSS products have earned a renowned reputation for exceptional sound quality, and Soundweb OMNI I/O expansion devices showcase this legacy with the highest quality solid-state 60dB microphone preamp.

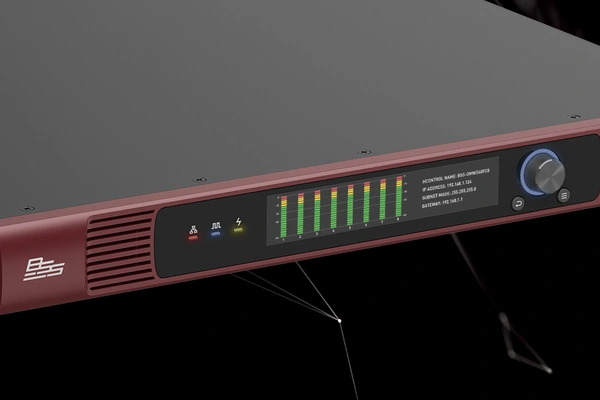

Full-Color, Interactive Front Panel LCD Display

Every Soundweb OMNI I/O Expander includes a convenient full-color front panel LCD display for simplified configuration and at-a-glance status monitoring with meters.

Dante Spoken Here

Audinate’s Dante audio networking is the world’s most universally adopted networked audio technology, used extensively for commercial installations, live performances, recording and production, and more.

Enabled by AVX Suite

AVX Suite puts control and creativity at your fingertips, allowing you to execute a unified audio video control system with excellence. This suite of applications creates a streamlined workflow for all aspects of solution development, control, and support.
